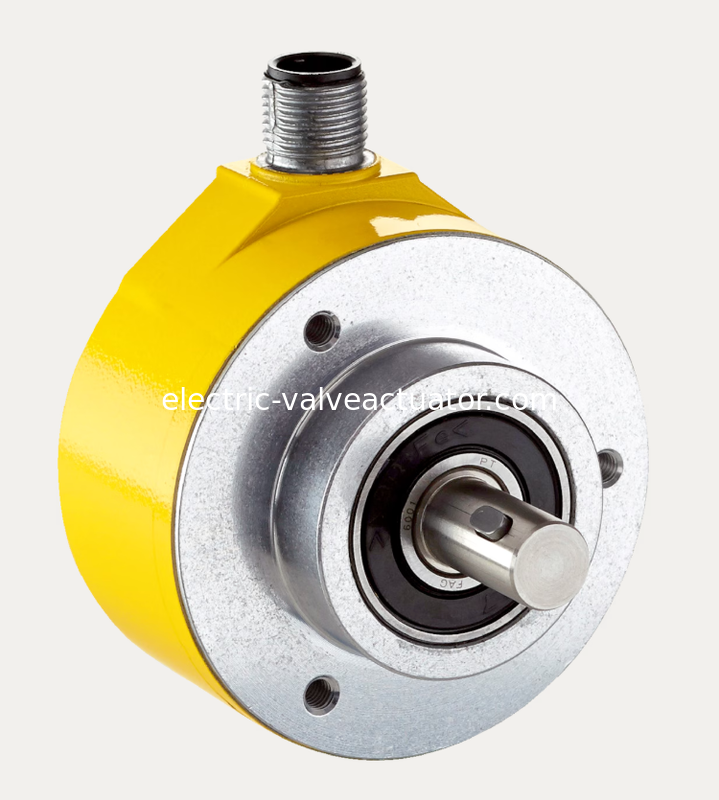

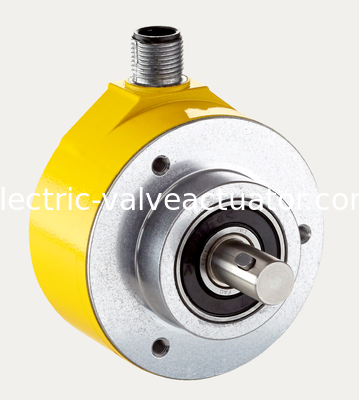

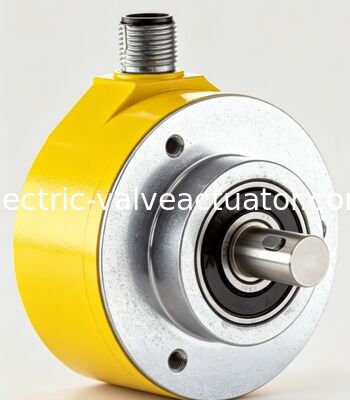

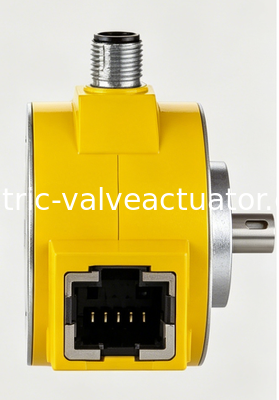

SICK AFM60S-SESC262144 Absolute Position Feedback Encoder for Functional Safety Applications

SICK AFM60S-SESC262144 Absolute Position Feedback Encoder for Functional Safety Applications

Tên thương hiệu: SICK
Số mẫu: KTM-LN55182P
MOQ: 1
giá bán: Có thể đàm phán
Thông tin chi tiết
Nguồn gốc:
OEM
Số bước mỗi vòng (độ phân giải tối đa):
262.144 (18 bit)
Số lượt:
4.096 (12 bit)
Độ phân giải tối đa (bước mỗi lượt x lượt):
18 bit x 12 bit (262.144 x 4.096)
Giới hạn lỗi G:
0,05°1)
Độ lệch chuẩn lặp lại σ r:
0,002° 2)
Giao diện truyền thông:
SSI
Chi tiết giao diện truyền thông:
SSI+Sin/Cos
thời gian khởi tạo:
2 giây 1)
Thời gian tạo dữ liệu vị trí:
<1 µs
Chu kỳ sin/cos trên mỗi chu kỳ:
1.024
Tần số đầu ra:
≤ 153,6 kHz
Điện trở tải:
≥ 120 Ω
Tín hiệu giao diện trước khi tạo vi sai:
0,5 VSS, ± 20%
Độ lệch tín hiệu trước khi tạo vi sai:
2,5V ± 10%
Tín hiệu giao diện được tạo vi sai:
1 Vss, ± 20 %
điện áp cung cấp:
4,5... 30V
Lãng phí điện năng:
0,7 W (không tải)
chi tiết đóng gói:
hộp ban đầu mới
Mô tả sản phẩm
SICK AFM60S-SESC262144 Absolute Position Feedback Encoder for Functional Safety Applications
Product Overview

The SICK AFM60S-SESC262144 is a high-precision absolute position feedback encoder engineered specifically for functional safety applications, combining robust mechanical design with advanced electronic performance to deliver reliable position data in even the most demanding industrial environments.

Safety Certifications
Certified to SIL 3 (IEC 61508) and Performance Level e (ISO 13849-1), this encoder ensures maximum operational safety by enabling accurate, real-time monitoring of rotational position.
Technical Specifications
Single-Turn Resolution:
18-bit (262,144 steps)
Multi-Turn Capability:
12-bit (4,096 revolutions)
Total Resolution:
Exceeding 30 bits
Enclosure Protection:
IP65
Operating Temperature:
-30°C to +85°C
Output Interfaces:
SSI and Sin/Cos signals
Safety Functions
  • Safe speed monitoring
  • Safe direction detection
  • Safe limited travel
Mechanical Design

Featuring a durable clamping flange and solid shaft with feather key connection, the AFM60S-SESC262144 is built to withstand harsh industrial conditions while providing reliable performance.

Applications & Benefits

With low latency, high repeatability, and diagnostic coverage exceeding industry requirements, this encoder enhances machine safety while improving overall equipment effectiveness. Ideal for packaging machinery, material handling systems, robotics, and process automation applications.
