Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa

Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa

Tên thương hiệu: Mofei
Số mẫu: L129CK1
MOQ: 1
giá bán: Negotiations
Thông tin chi tiết
Nguồn gốc:
Hoa Kỳ
Áp lực công việc tối đa:
10psi(68,9kPa)
Kết nối xử lý:
1/2NPT
vật liệu nổi:
Thau
Vật liệu vỏ:
Nhôm đúc
chi tiết đóng gói:
Hộp gốc mới
Làm nổi bật:

Mofei L129 liquid level switch

,

liquid level switch with warranty

,

magnetic level gauge 68.9kPa

Mô tả sản phẩm
Mofei L129 Series Liquid Level Switch L129CK1
Mofei L129 series liquid level switch L129CK1 maximum working pressure 68,9kPa 0
Product Overview

The L129 series is used to monitor lubricating oil levels without requiring engine, pump, or compressor shutdown. This combination indicator gauge features float operation with adjustable low and high limit switches.

Key Features
  • Maximum working pressure: 68.9kPa
  • Combination indicator gauge with adjustable limit switches
  • Prevents low fuel levels or overflow conditions

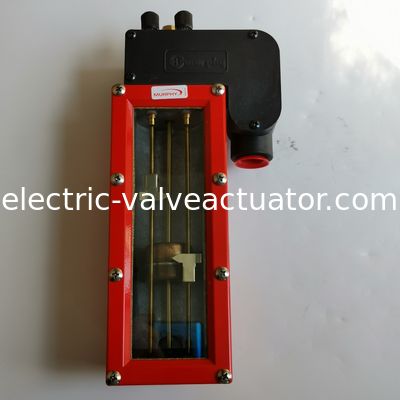

  • 6-3/4 inch (171 mm) deep sight gauge for visual oil level inspection during operation
  • 4-7/8 inch (122 mm) adjustable limit contact range
  • Normally open circuit activates alarms/shutdown when limits are reached
Model Variations

L129: Designed for grounding low-voltage electrical systems with single wire to ground circuit.

L129CK1: Designed for applications requiring three wire ground circuit, featuring ungrounded contacts and conduit hubs for wire protection.

Applications

When properly installed and maintained, the L129 series effectively monitors and protects engines and pumps from improper lubrication levels that could cause significant damage.

Recommended for engines and pumps with large crankcase capacities.
