| Tên thương hiệu: | Fluke |
| Số mẫu: | Fluke 835 |
| MOQ: | 1 |
| giá bán: | Negotistical |

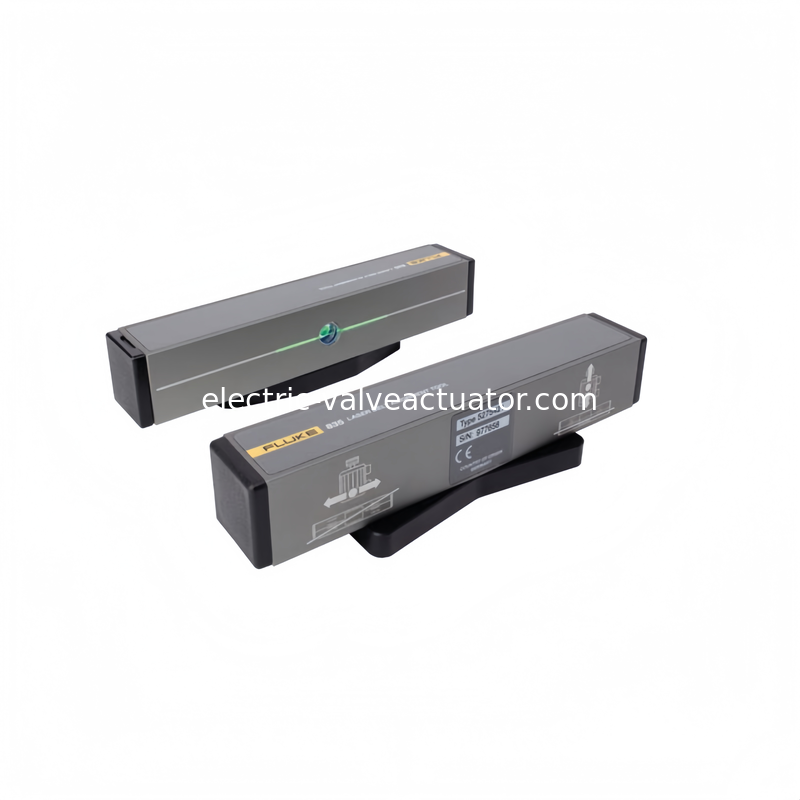

The Fluke 835 Belt Drive Laser Alignment Tool is an ideal alignment solution that helps you accurately align belt-driven machines in your factory equipment.
| Specification | Value |
|---|---|
| Accuracy | 0.2˚ |
| Laser Wavelength | 505 - 535 nm (Green — for better visibility) |
| Output Power | < 1.0 mW |
| Classification | 2 |
| Measuring Distance | 10 m between devices |
| Laser Line Length | 7 m between devices (5 m) |
| Control Device | Laser on/off rocker switch |
| Battery Type | 4 AAA alkaline batteries |
| Working Time | 6 hours |
| Operating Temperature | -5˚C to 40˚C |
| Storage Temperature | -10˚C to 70˚C |
| Mounting Method | Strong magnet |
| Weight | 0.3 kg |
| Dimensions | 37 x 40 x 170 mm |
| Housing | Gray anodized aluminum |
| Specification | Value |
|---|---|
| Accuracy | 0.2˚ |
| Reflector Size | 21 x 32 mm |
| Mounting Method | Strong magnet |
| Weight | 0.27 kg |
| Dimensions | 37 x 40 x 170 mm |
| Casing | Gray anodized aluminum |
The Fluke 835 Belt Drive Laser Alignment Tool quickly, easily, and accurately aligns pulleys to ensure your factory's continuous operation. In just a few steps, you can accurately align all belt-driven machines in your factory.
With the Fluke 835, a single operator can quickly and easily achieve accurate alignment of all standard belt-driven machines—a task that has been neglected. The benefits of accurate alignment include:
