| Tên thương hiệu: | Hua Heng |
| Số mẫu: | HY-3VET |
| MOQ: | 1 |
| giá bán: | Có thể đàm phán |
| Measurement Range | Amplitude: 0-1000 μm (peak to peak) Intensity: 0-1000 mm/s (true effective value) |
| Frequency Range | 5-3000 Hz |
| Input Signal | VS series vibration speed sensors (absolute vibration) ES series eddy current sensors (relative shaft vibration) |
| Measurement Accuracy | Level 0.5, linear error ≤ ±0.5% |

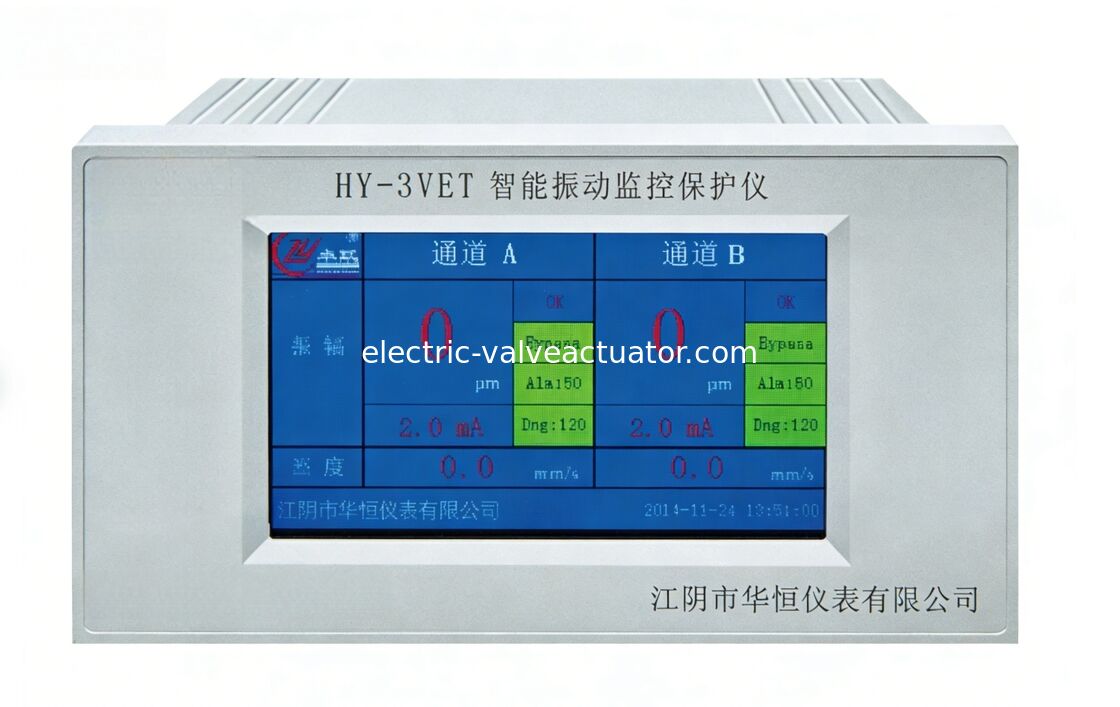

| Display | 4.3-inch TFT true color touch screen |
| Output Signals | 4-20mA current output (load ≤850Ω) BUF signal for waveform analysis RS485 Modbus RTU communication Switch outputs: DC30V/5A or AC250V/5A |
| Operating Environment | -40℃ to 65℃, relative humidity ≤95% (non-condensing) |
| Power Supply | AC 85V-265V or DC 100V-360V |
