| Tên thương hiệu: | GE |

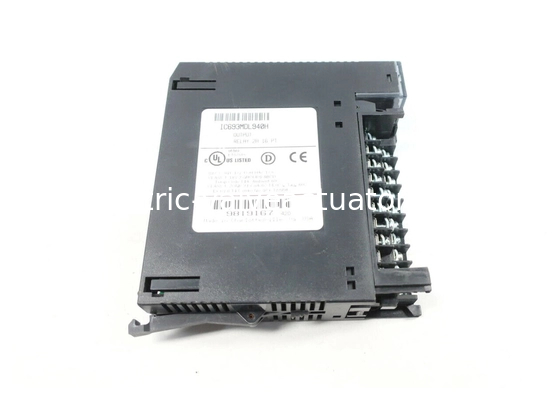

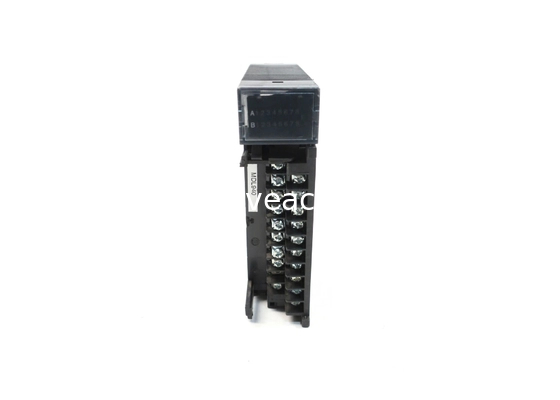

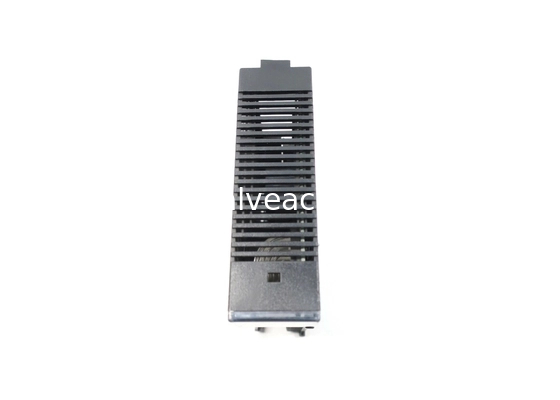

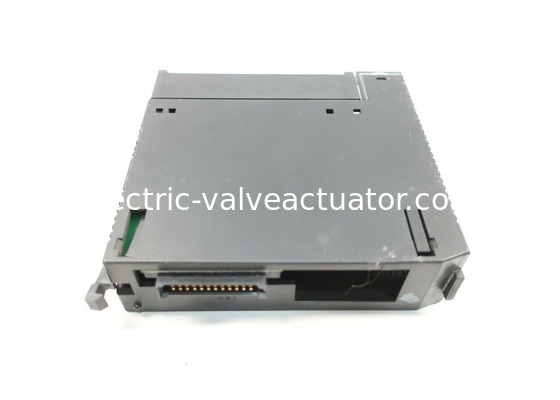

| Số mẫu: | IC693MDL940 |
| MOQ: | 1 |
| giá bán: | Negotiations |
| Specification | Details |
|---|---|
| Rated Voltage | 24 volts DC, 120/240 VAC (nominal - see the following table for exceptions) |
| Operating Voltage | 5 to 30 volts DC 5 to 250 VAC, 50/60 Hz |
| Outputs per Module | 16 (four groups of four outputs each) |
| Isolation: Field to Backplane and to Frame Ground | 250 VAC continuous; 1500 VAC for 1 minute |
| Isolation: Point to Point | 250 VAC continuous; 1500 VAC for 1 minute |
| Maximum Load | 2 Amps pilot duty maximum per output 4 Amps maximum per common 16 amps maximum per module |
| Minimum Load | 10mA |
| Maximum Inrush | 5 Amps |
| On Response Time | 15ms maximum |
| Off Response Time | 15ms maximum |
| Power Consumption, all outputs on | 7mA from 5 volt bus on backplane 135mA from relay 24V bus on backplane |
