GE FANUC IC693CPU313 BASE W/ TURBO CPU 5 SLOT 0.6 MILLISECOND PLC Module

Description of GE FANUC IC693CPU313 BASE W/ TURBO CPU 5 SLOT 0.6 MILLISECOND

Quick Details:

• IC693CPU313
• DISCONTINUED BY MANUFACTURER
• BASE W/ TURBO CPU
• 5 SLOT
• 0.6 MILLISECOND
• 12KBYTE
• 1K REGISTERS
•


Product Description:

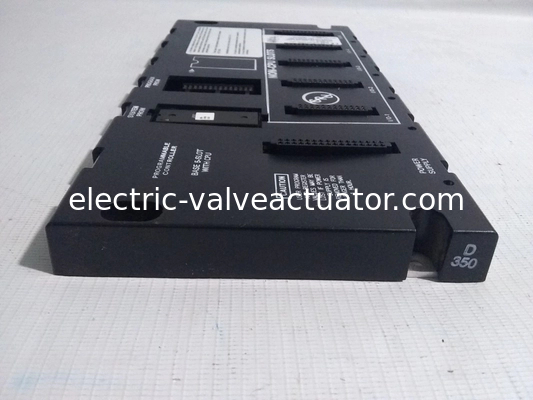

The GE Fanuc IC693CPU313 is an embedded CPU with a 5-slotted baseplate that contains single baseplate per system. This module reaches a processing speed of 10 MHz with the processor 80188. The power required to perform its function is 5 VDC and the current drawn by this module is 430 mA. This operation of this module happens at a temperature range from 0°C to 60 °C.

The IC693CPU313 is provided with a maximum user memory of 12 KB for programming which is allocated in various memory types. The user memory associated with the Analog input (%AI) and Analog output (%AO) is 64 words and 32 words respectively. This module requires 128 bits of memory for the reference of system status in which each sub-memory types requires 32 bits. The memory is also allocated for system registers (%SR) of 16 words. The register memory also has maximum space for storing up to 1024 words of data. The memory associated with internal coils (%M) and temporary output coils (%T) is 1024 bits and 264 bits respectively. The main memory in the IC63CPU313 is discrete global memory (%G) which is 1280 bits.

The communication with other modules is done via LAN which supports multidrop. The IC693CPU313 also supports optional modules like GCM, GCM+, Ethernet, Profibus, FIP, GBC, etc. The memory storage used in this module are RAM or EPROM. This module can achieve a scan rate of 0.6 milliseconds/1K and is provided with a single built-in port which supports protocol such as SNP slave and SNP-X slave.

Technical Specifications

Specifications Manuals


This unit does not support the use of Expansion or Remote racks, so an embedded CPU does not have an expansion connector like the modular baseplates do.
