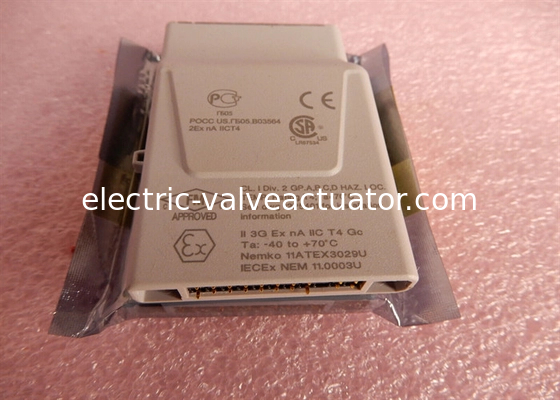

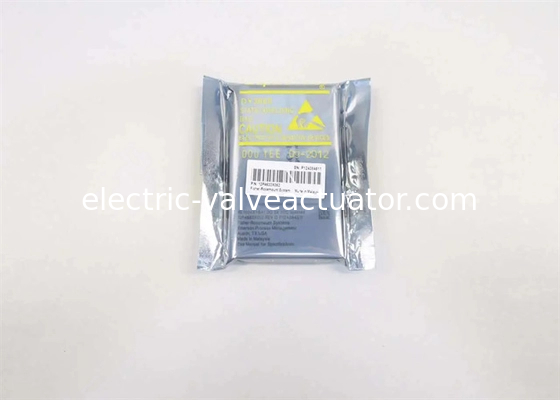

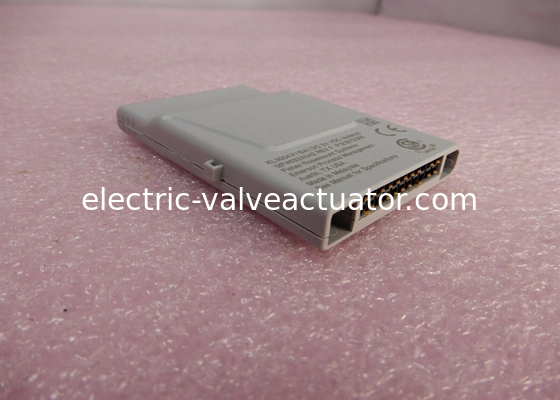

Emerson KL3004 Digital I O Output Module Brand New Original Box

Emerson KL3004X1-BA1 Digital I O Module Brand New Original Box

Description:

Power Specifications:

Charm Bus Power:6.3 VDC at 32 A
Field Circuit Power: 24 VDC at 10 mA

Environmental Specifications:

Ambient Temperature: -40°C to +70°C
Shock: 10g ½ Sinewave for 11msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing
Terminal Block Key Position:5C

Note: Refer to the product label for serial number and location and date of manufacture.

Warning: This product has specific instructions for installation, removal and operation in hazardous areas.

Refer to document 12P5403 "DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation
Instructions". Other installation instructions are available in the "DeltaV™ S-Series and CHARMs Hardware Installation" manual.

Removal and Insertion:

This unit cannot be removed or inserted with system power energized.
Non-sparking field circuits MUST be de-energized before removing and inserting a CHARM.

For non-sparking circuits, the fuse on a CHARM terminal block cannot be removed when field power is energized.
A keying system ensures compatibility between a CHARM and the CHARM terminal block when the CHARM is installed on the terminal block.

The terminal block keys are automatically set the first time the CHARM is installed on the terminal block.

To install another CHARM type on a terminal block, reset the keys by removing the terminal block and releasing the keys from the locked position.

Maintenance and Adjustment: This unit contains no user serviceable parts and should not be disassembled for any reason.
Calibration is not required.
