| Tên thương hiệu: | ABB |
| Số mẫu: | AI895 3BSC690086R1 |
| MOQ: | 1 |
| giá bán: | Negotiations |

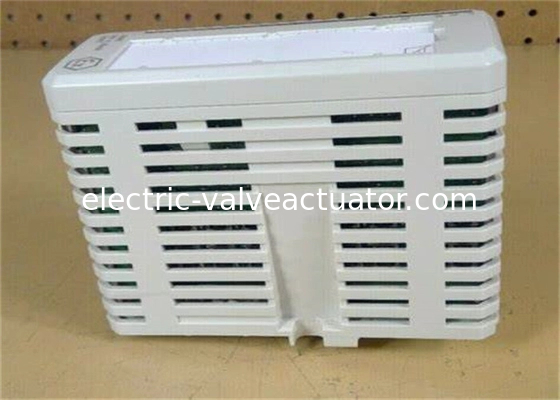

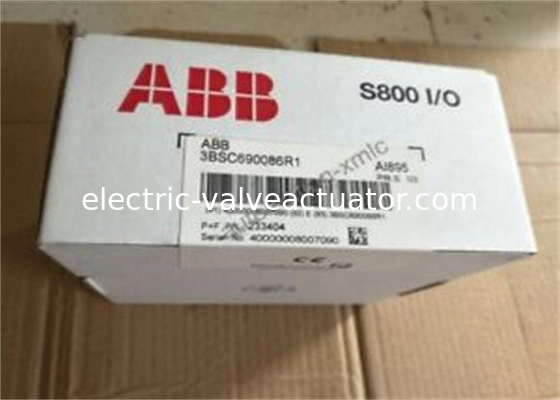

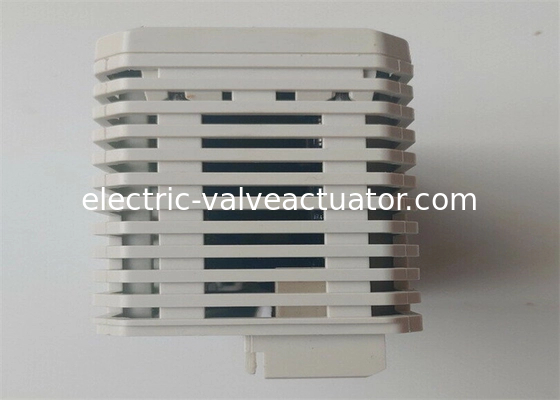

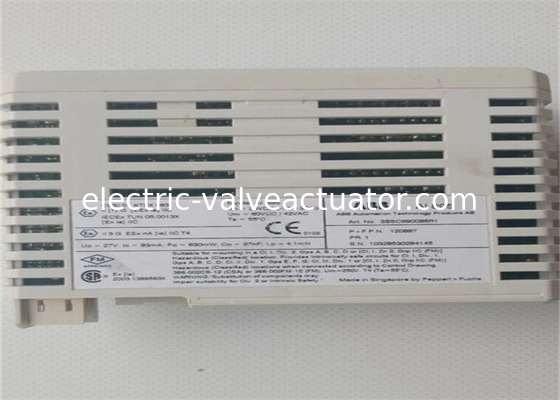

AI895 3BSC690086R1 ABB S800 Analog Input Module with HART communication
AI895 3BSC690086R1
The AI895 Analog Input Module can directly interface 2-wire transmitters and with a particular connection it can also interface 4-wire transmitters without losing the HART capability. The AI895 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can power and monitor a two-wire process transmitter and HART communication. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel is able to provide at least 15 V at a 20 mA loop current to power Ex certified process transmitters and is limited to 23 mA in overload conditions.
| General Information | |
| Product ID | 3BSC690086R1 |
| ABB Type Designation | AI895 |
| Catalog Description | AI895 Analog Input IS HART 8 ch |
| Long Description | 4...20mA single ended. Intrinsic Safety Interface and HART. |
| Use Module Termination Unit TU890 or TU891 | |
| Additional Information | |
| Medium Description | 4...20mA single ended. Intrinsic Safety Interface and HART. |
| Use Module Termination Unit TU890 or TU891 | |
| Product Type | I-O_Module |
| Ordering | |
| HS Code | 853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Depth / Length | 102 mm |
| Product Net Height | 119 mm |
| Product Net Width | 45 mm |
| Product Net Weight | 0.3 kg |
| Technical | |
| Channel Type | ANALOG |
| Number of Input Channels | 8 |
| Number of Output Channels | 0 |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries | 0 |
