| Tên thương hiệu: | ABB |

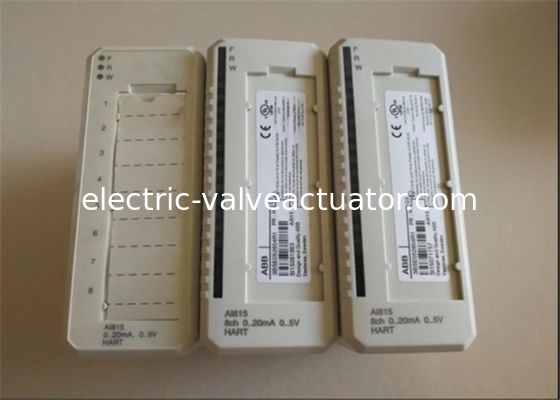

| Số mẫu: | AI815 |
| MOQ: | 1 |
| giá bán: | Negotiations |
| Type | Analog Input |
|---|---|
| Signal specification | 0..20 mA, 4..20 mA, 0..5 V, 1..5 V |

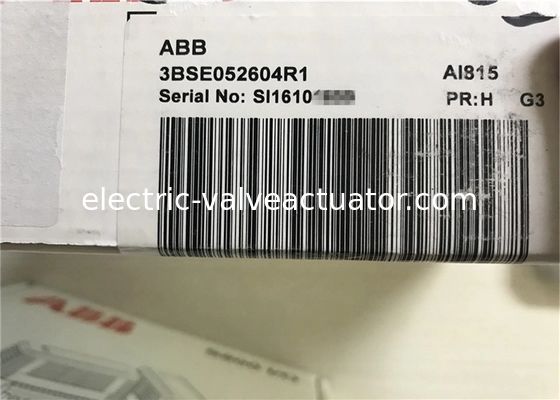

| Article number | 3BSE052604R1 |
| Number of channels | 8 |
| Signal type | Unipolar single ended |
| HART | Yes |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
| Resolution | 12 bit |
|---|---|
| Input impedance | 10 MΩ (voltage input) 250 Ω (current input incl. PTC) |
| Isolation | Groupwise isolated from ground |
| Under/over range | 0 / +15% |
| Error | Max. 0.1% |
| Temperature drift | Max. 50 ppm/°C |
| Input filter (rise time 0-90%) | 290 ms |
| Update cycle time | 10 ms |
| Current limiting | Built in current limited transmitter power |
| Maximum field cable length | 600 meters (656 yards) |
| NMRR, 50Hz, 60Hz | > 40 dB |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 3.5 W |
| Current consumption +5 V Modulebus | 100 mA |
| Current consumption +24 V Modulebus | Max. 265 mA (22 mA + 1.32 * transmitter current) |
| Current consumption +24 V external | 50 mA |
| Front LED's | F(ault), R(un), W(arning) |
|---|---|
| Supervision | Module error, if: analog read back, reference voltage, internal power supply, checksum, watchdog and memory error External channel error, if: external power supply low, transmitter power error |
| Status indication of supervision | Module Error, Module Warning, Channel error |
| CE mark | Yes |
|---|---|
| Electrical safety | IEC 61131-2, UL 508 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification | BV, DNV-GL, LR |
| Protection rating | IP20 according to IEC60529 |
| Corrosive atmosphere ISA-S71.04 | G3 |
| Climatic operating conditions | 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
| Pollution degree | Degree 2, IEC 60664-1 |
| Mechanical operating conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage categories | IEC/EN60664-1, EN 50178 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
| Max ambient temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
