| Tên thương hiệu: | Schneider |

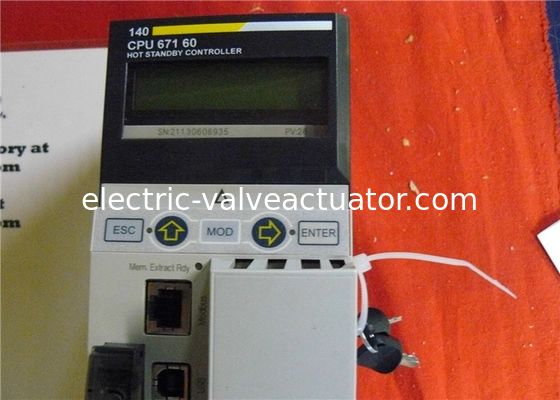

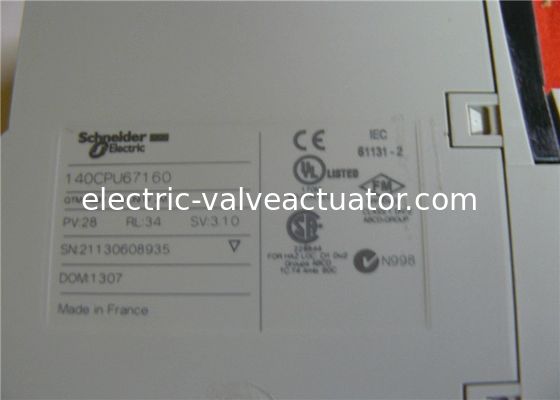

| Số mẫu: | 140CPU67160 |
| MOQ: | 1 |
| giá bán: | Negotiations |
| Product Or Component Type | Unity Processor |
| Clock Frequency | 266 MHz |
| Type | Modicon Quantum Automation Platform |
| Manufacturer: | Modicon Quantum |
| Series: | Quantum CPUs |
| Weight: | 2 lb |
| Product or component: | Unity processor |
| Clock frequency: | 266 MHz |
| Number of slots: | 10 | 16 | 2 | 4 | 6 |
| Number of racks: | 2 - local rack(s) |
| Number of distributed I/O station: | 63 station(s) - 1 rack(s) - 3 distributed network(s) |
| Number of remote I/O station: | 31 - 2 remote rack(s) |
| Discrete I/O number: | 8000 inputs, 8000 outputs - distributed - per network | 31744 inputs, 31744 outputs - remote | Unlimited (26 slots max) - local |
| Analogue I/O number: | Unlimited (26 slots max) - local | 500 inputs, 500 outputs - distributed - per network | 1984 inputs,1984 outputs - remote |
| Application specific I/O: | Accurate time stamping | Counter | High-speed interrupt inputs | Serial link |
| Number of optional modules: | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections: | Unlimited (AS-Interface) - local | 6 (Profibus DP) - local | 6 (Modbus Plus) - local | 6 (Ethernet TCP/IP) - local | 4 (AS-Interface) - remote | 2 (AS-Interface) - distributed | 1 (USB) | 1 (Modbus) - RS232/485 Modbus/ASCII |
| Integrated connection type: | 1 Ethernet TCP/IP | 1 Modbus | 1 Modbus Plus | 1 USB |
| Checks: | Process control |
| Memory description: | Expandable 8 MB - file storage with PCMCIA card | Expandable 7168 kB - program with PCMCIA card | Internal RAM 768 kB |
| Switch function: | Key switch memory port on/off |
| Application structure: | 4 auxiliary tasks | 32 timer interrupt tasks | 128 interrupt tasks | 128 I/O interrupt tasks | 1 periodic fast task | 1 cyclic/periodic master task |
| Execution time per instruction: | 0.48...0.56 µs floating points | 0.0525...0.075 µs Boolean | 0.045...0.06 µs on word | 0.045...0.06 µs on fixed-point arithmetic |
| Execution time for 1 K instruction: | 9.91 65% Boolean and 35% numerical | 10.28 100% Boolean |
| System overhead: | 1 ms - master task | 0.2 ms - fast task |
| Bus current requirement: | 2160 mA |
| Local signalling: | 1 LED red for Ethernet collision | 1 LED green for Ethernet activity (COM) |
| Electrical connection: | 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network | 1 connector, connector type: RJ45 for connecting Modbus bus | 1 connector, connector type: RJ45 for connecting Ethernet network | 1 connector, connector type: MT-RJ (fiber optic) for interconnecting primary and secondary PLCs (hot standby architecture) |
