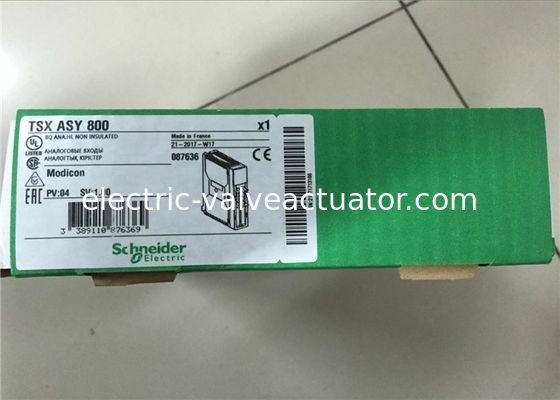

Schneider Electric TSXASY800 Analog output module Modicon Premium 8 O multirange

Tên thương hiệu:	Schneider
Số mẫu:	TSXASZ200
MOQ:	1
giá bán:	Negotiations

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Place of Origin:

France

Conversion Time:

5 Ms

Packaging Details:

New original box

Làm nổi bật:

Schneider Electric analog output module

Modicon Premium 8O module

multirange analog output module

Mô tả sản phẩm

Schneider Electric TSXASY800 Analog Output Module Modicon Premium 8 O Multirange

Key Attributes

Attribute	Value
Conversion Time	5 Ms

Product Overview

Main range of product: Modicon Premium Automation platform
Product type: Analog output module
Analog output number: 8

Technical Specifications

Analog output type: Current: 0...20 mA, Current: 4...20 mA, Voltage: +/- 10 V
Analog/digital conversion: 13 bits + sign +/- 10 V, 13 bits 0...20 mA, 13 bits 4...20 mA
Complementary conversion time: 5 ms
Measurement resolution: 1.28 mV +/- 10 V, 2.56 µA 0...20 mA, 2.56 µA 4...20 mA
Electrical connection: 1 SUB-D 25 connector
Measurement error: Various values depending on range and temperature
Isolation between channels: Common point
Isolation between channels and bus: 1000 Vrms
Isolation between channels and ground: 1000 Vrms
Protection type: Short-circuit protection, Overload protection
Output voltage limits: ≤ 30 V
Load impedance ohmic: < 600 Ohm (current), > 1000 Ohm (voltage)
Maximum load inductance: 300 µH
Maximum load capacitance: 0.1 µF
Marking: CE
Current consumption: 200 mA at 5 V DC, 300 mA at 24 V DC
Module format: Standard

Terminals Description

Detailed terminal configuration available with specific pin assignments for analog outputs and power connections.

Environmental Specifications

Operating temperature: 0...60 °C
Storage temperature: -25...70 °C
Relative humidity: 10...95% (operation), 5...95% (storage)
Operating altitude: 0...2000 m
Protective treatment: TC
IP degree of protection: IP20
Pollution degree: 2

Certifications and Standards

Compliant with multiple international standards including IEC 61131-2, UL 508, and various CSA standards. Certified by BV, RINA, DNV, LR, ABS, RMRS, GL.
