Nguồn gốc: | Trung Quốc |
Hàng hiệu: | DYLINK |
Số mô hình: | SW1801D |
Số lượng đặt hàng tối thiểu: | 1 bộ |
---|---|
chi tiết đóng gói: | Đóng gói hộp gỗ |
Thời gian giao hàng: | 15 ngày sau khi ký hợp đồng |
Điều khoản thanh toán: | T / T |
Khả năng cung cấp: | 1000 bộ |
Thông số kỹ thuật: | SW1801D | Kết nối máy tính: | số 8 |
---|---|---|---|
Kết nối máy chủ: | 8x DVI Female ; 8x USB Type B Female | Độ phân giải kỹ thuật số tối đa: | 1920 x 1200 @ 60Hz |
Nhiệt độ hoạt động: | -40 ~ + 55 ° C | Nguồn cấp: | PCB / 1A |
Kích thước (Rộng x Cao x Dày): | 438mm X 153mm X 44,5mm | ||
Điểm nổi bật: | Bộ chuyển mạch DVI KVM nữ,Bộ chuyển mạch DVI KVM 8 cổng,Bộ chuyển mạch KVM gắn giá đỡ DVI |

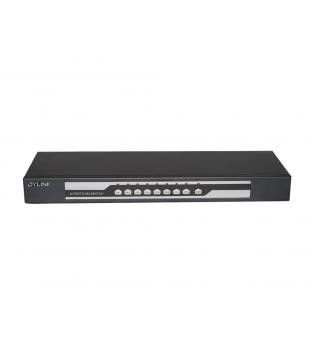

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
Specifications | SW1801D |
Computer Connections | 8 |

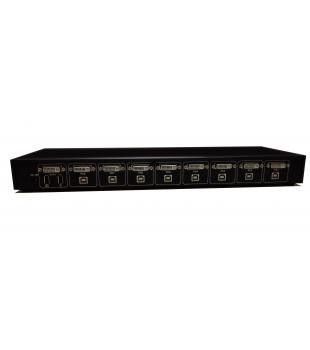

Host Connectors | 8x DVI Female;8x USB Type B female; |
Console Interfaces |
1x DVI Female; 2x USB Type A female; |
DVI Specification | V1.0 |
Maximum Digital Resolutions | 1920 x 1200@60Hz |
LED Indicators | 8 |
Port Selection | Push Button and Hotkeys |
Power Supply | DC12V/1A |
Operating TemperatureRange | -40 ~ +55°C |
Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
